Air Systems International - In-Line Steel Axial Fan SVF-10E

Home > Air Systems Intl. >

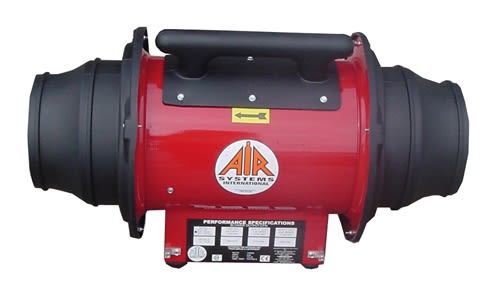

Air Systems International - In-Line Steel Axial Fan for Non-Hazardous Locations

Dimensions: 16"L x 16.75"H x 12.5"W

Product Code: SVF-10E

Please Call Our Toll Free Number,
1(866)855-5739, For Pricing and Availability.

Description

Online Information

Please Call for Pricing and Availability
The 10” in-line axial fan has been designed to be used as a stand alone fan or attached in series to run long lengths of ventilation duct. Intake and exhaust flanges allow for either 8” or 10” duct to be attached to either end of the blower to achieve positive or negative ventilation. The blower is light weight and weighs less than thirty pounds.

Features

Weight: 28lbs. standard electric, 32lbs explosion-proof electric
Frame: All steel, powder coat red with rubber base feet
Inlet/Exhaust flange made of molded conductive polyethylene
Standard Electric Motor: 1/3 HP, continuous duty, 115 VAC, 1-phase, 60Hz
Explosion-proof Electric Motor: 1/3 HP, 115 VAC, 1-phase, 60 Hz. Approved for Class 1, Div. 1,Group D, Class 2, Groups E, F, and G, automatic reset thermal overload
Power cord: 10ft.SOOW cable with installed strain release
Grounding lug installed on steel housing on explosion-proof model
Flow: 1390cfm free air delivery
